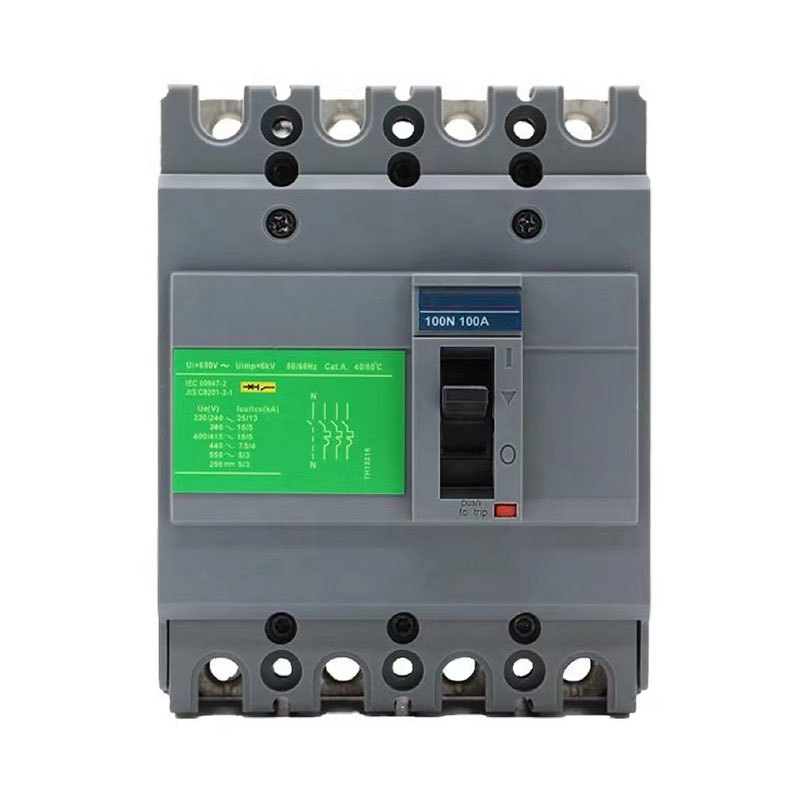

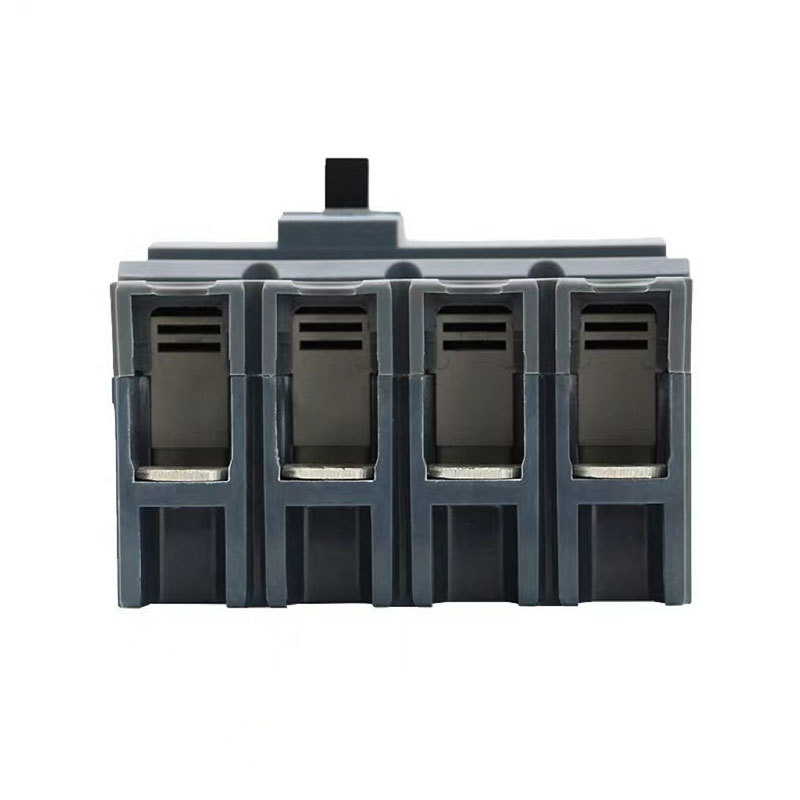

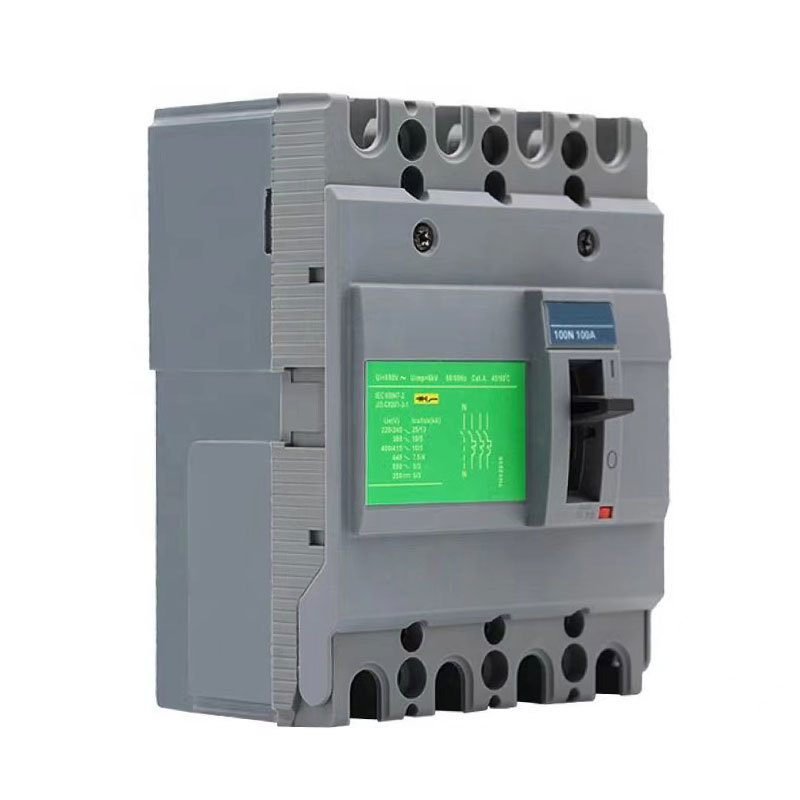

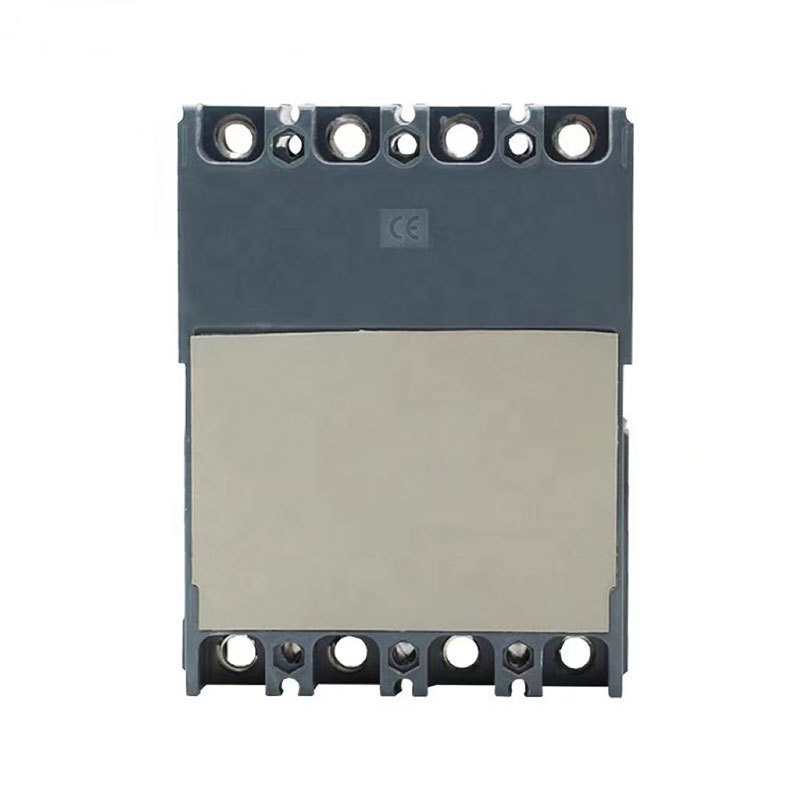

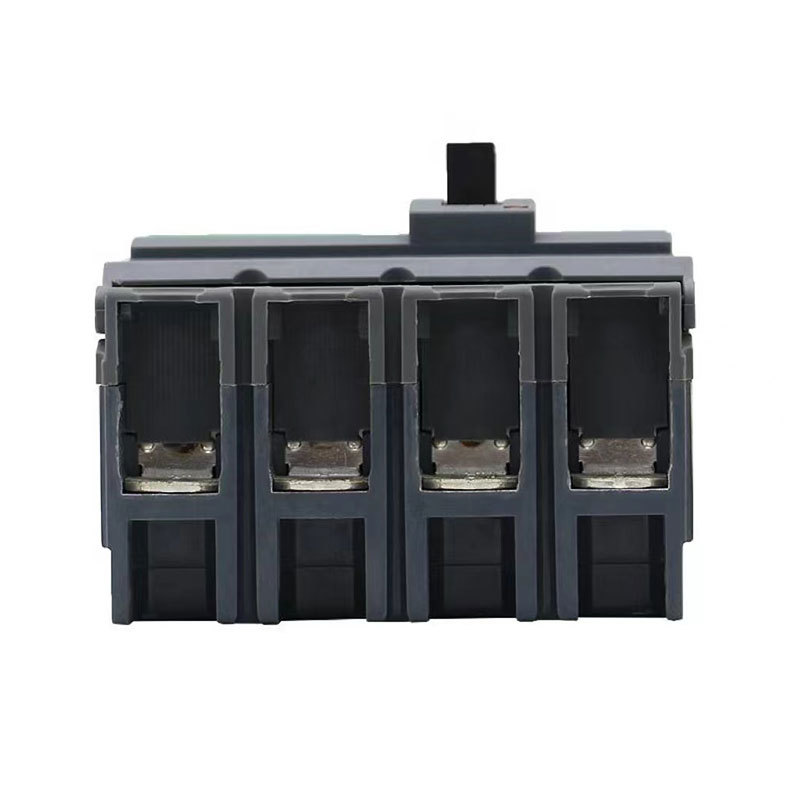

BEZC 3P 3 Pole BEZC-100N 100A MCCB Mould Case Circuit Breaker

BEZC 3P 3 Pole BEZC-100N 100A MCCB Mould Case Circuit Breaker

Our products with good quality,competitive price and good service enjoy great popularity among our customers

Key words：

Mould Case Circuit breaker

Classification：

Mould Case Circuit Breaker

E-mail：

beatrizli@whjoysea.cn

WRITE A MESSAGE TO US

Related Products

APPLICATION:

BEZC series moulded case circuit breaker is apllicable to the circuit of AC50/60Hz,rated insulation voltage 690V,rated operating voltage up to AC 660V,rated current 15A-400A for power distribution and protection of electrical equipment in case of overload,short circuit and undervoltage and also for unfrequent switchover of electrical circuits under normal conditions.The MCCB conforms to standard IEC60947-2.

SPECIFICATION

Type	Rated current of trip(In A)	Pole number	Rated insulating voltage(V)	Rated operating distance (mm)	Pollution degree	Ultimate short circuit breakering capacity (kA)	Rated servic breaking capacity(kA)
BEZC-100B	15,16,20,25,30,32,40,45,50,60	3P	690	≤690	3	10
						7.5
						5
						2.5
BEZC-100F	15,16,20,25,30,32,40,45,50,60,63,75,80,100	3P				25
						20
						7.5
						5
BEZC-100N	15,16,20,25,30,32,40,45,50,60,63,75,80,100	1P				18
						2.5
		3P,4P				25
						15
BEZC-100H	15,16,20,25,30,32,40,45,50,60,63,75,80,100	1P				25
						5
		2P, 3P,4P				30
						30
BEZC-250F	100,125,150,160,175,200,225,250	3P				25
						18
						15
						5
BEZC-250N	100,125,150,160,175,200,225,250	3P				50
						25
						20
						8
BEZC-250H	100,125,150, 160,175,200, 225,250	2P,3P				85
						36
						25
						10
BEZC-250N	63,80,100,125, 150,160,175,200,225,250	4P				25
						25
						20
						8
BEZC-250H	100,125,150, 160,175,200, 225,250	2P,3P				85
						36
						25
						10
BEZC-250N	63,80,100,125, 150,160,175, 200,225,250	4P				25
						25
						20
						8
BEZC-250H	63,80,100,125, 150,160,175, 200,225,250	4P				36
						25
						10
						10
BEZCV250N	63,80,100,125, 150,160,175, 200,225,250	3P,4P				25
						20
						-
						-
BEZCV250H	63,80,100,125, 150,160,175, 200,225,250	3P,4P				36
						25
						-
						-
BEZC400N	250,300,320, 350,400	3P,4P				36
						15
BEZC400H						50
						20
