SW200 Intelligent Networking Traffic Signal Controller
Key words：
Classification：
Traffic Light Controller
E-mail：
PRODUCT DESCRIPTION:
· Powerful computing and communication with advanced ARM 32-bit chip.
· Higher running stability with SCR control on traffic signal outputs.
· Easy extension and compatibility with open NTCIP communication protocol.
· Accurate timing with GPS.
· Networking for remote control and monitoring
· Multi working modes – fixed time, pedestrian request, green wave, actuated and manual control.
· Wiring terminals for both main and spare power supply for easy connection with electric generator during power failure.
· Easy assembly and maintenance with modular designed control boards and driving boards.
· Built-in led lamp for night operation and maintenance.
OVERVIEW：
· SW200 is a 48 outputs intelligent networking road traffic signal controller, equipped with 32-bit ARM microcontroller, 6U modular designed control boards and driving boards, and 19 inches standard rack-mounted case. It adopts standardized NTCIP communication protocol, which supports network remote control and a variety of control strategies.
· HARDWARE COMPOSITION：

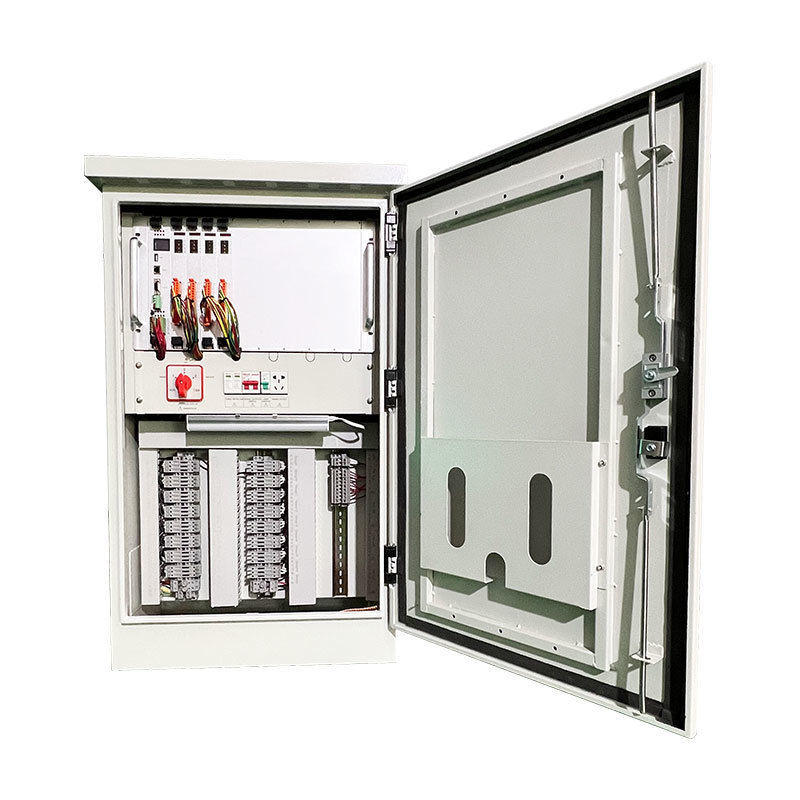

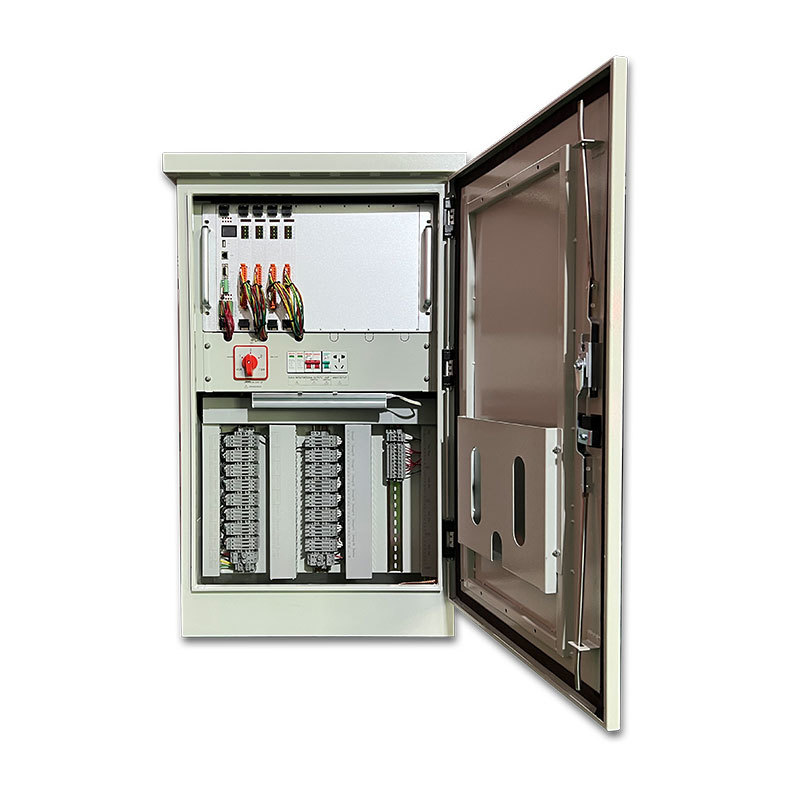

· SW200 Traffic signal controller is composed of main control board, signal driver board, detection board, backplane, rack-mounted case, power supply, power distribution and outer cabinet.
Specifications：
|
Composition |
Parameter |
Note |
|

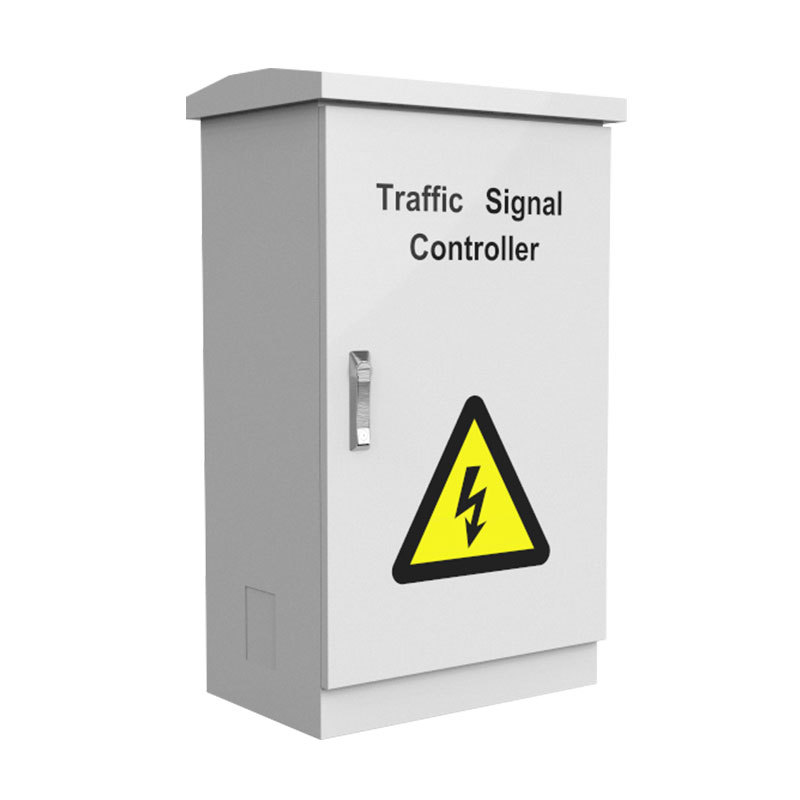

Outer Cabinet |
19 inches width, made from sheet metal with plastic-sprayed surface |
|
|
Power Distribution |
Main/spare power supply switch, surge protector, MCB（Miniature Circuit Breaker）, mains voltage outlet, signal output terminals with fuse, ground terminal |
|
|
Rack-mounted Case |
6U rack plug-in structure, aluminum alloy material, pluggable control board and signal driving boards |
|
|
Power Supply |
Wide input voltage: AC85V-265V, 50/ 60Hz |
|
|
Main Control |
ARM main control board with color LCD display (Resolution :128*64) |
With GPS |
|
Signal Driver Board |
12 signal outputs per board, with current and voltage detection |
Standard with 4 signal driver boards, extensible to 8 |
|
Detection Board |
Vehicle detector interface board, with 32 - I/O signal inputs |
Optional |
ELECTRICAL PARAMETERS：
|
Item |
Parameter |
Note |
|
Traffic Signal Outputs |
48 signal outputs =16 signal groups |
Extensible to 96 signal outputs = 32 groups |
|
GPS |
GPS accurate timing |
|
|
Standard Interface |
1-network, 1-RS485, 2-RS232, |
|
|
Extensible Interface |
Extensible 32-I/O signal inputs if with optional detection board. |
|
|
Working Voltage |
AC85V-265V, 50/ 60Hz |
|
|
Working Humidity |
<95%, No condensation |
|
|
Working Temperature |
-40℃ ～+70℃ |
|
|
Power Consumption |
<30W |
|
|
Dielectric Strength |
>10MΩ |
|
|
Ingress Protection |
IP54 |
|
