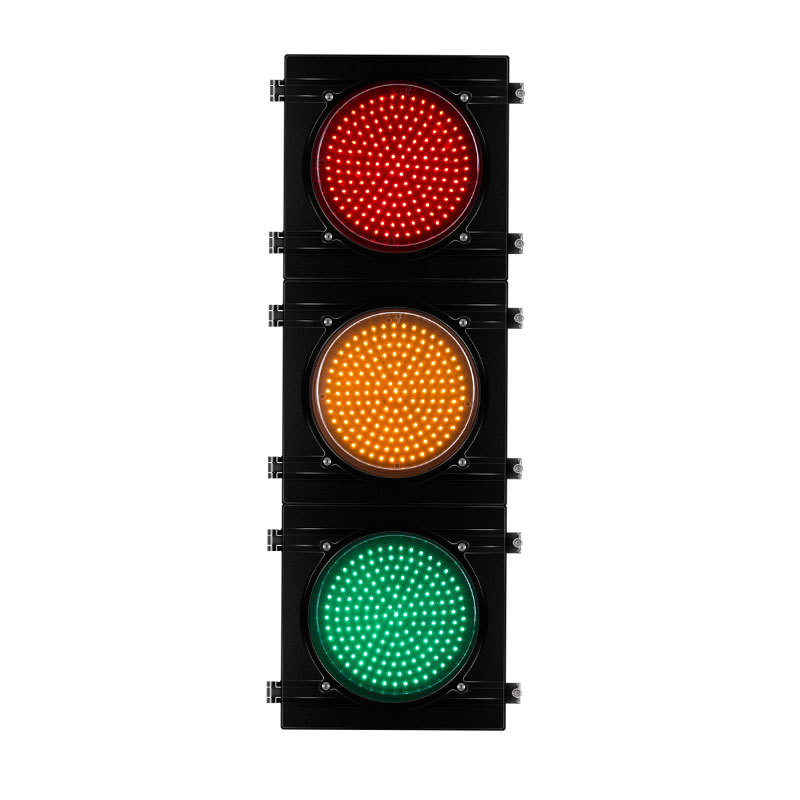

Clear Lens Vehicle Traffic Light
Key words：
Classification：
Vehicle Traffic Light
E-mail：
PRODUCT DESCRIPTION:
· Application-urban traffic signaling
· Wide operating voltage
· Transparent polycarbonate optical lens – impact resistant
· Anti-phantom effect minimized, optimal viewing angle
· High intensity LED light source – low energy consumption
· 5mm LED (DIP) by EPISTAR
· Long life cycle – more than 80,000 working hours
· Highly durable polycarbonate housing, UV-light resistant
· Modular design – easy installation and maintenance
· Easy access using of wingnuts open system
· Fixation system either with PC or aluminum mounting brackets
· Compliance with CE, RoHS, EN12368, ISO9001
Specifications：
|
Diameter |
φ 200mm |
φ 300mm |
|
LED Type |
5mm DIP |
|
|
Color-Wavelength |
Red 620~630nm, Amber 590~594nm, Green 503~508nm |
|
|
Optical Performance |
Conform to EN12368 standard |
|
|
View Distance |
≥300m |
≥500m |
|
Input Voltage |
AC85-265V, DC10-30V |
|
|
Power Factor |
＞ 0.9 |
|
|
EMC |
acc. to EN50293 |
|
|
Power Consumption |
R ≤ 5W |
R ≤ 7W |
|
Y ≤ 6W |
Y ≤ 8W |
|
|
G ≤ 5W |
G ≤ 7W |
|
|
Working Temperature |
-40℃ ~ +80℃ (Class A,B,C acc. To EN12368) |
|
|
Ingress Protection |
IP55 acc. to EN 60529 |
|
|
Impact Resistance |
Class IR 3 acc. To EN60598-1 |
|
|
Material of Lens/Housing |
UV-stabilized polycarbonate |
|
|
Color of Housing |
Black - standard, fir-green/yellow upon qty request |
|
