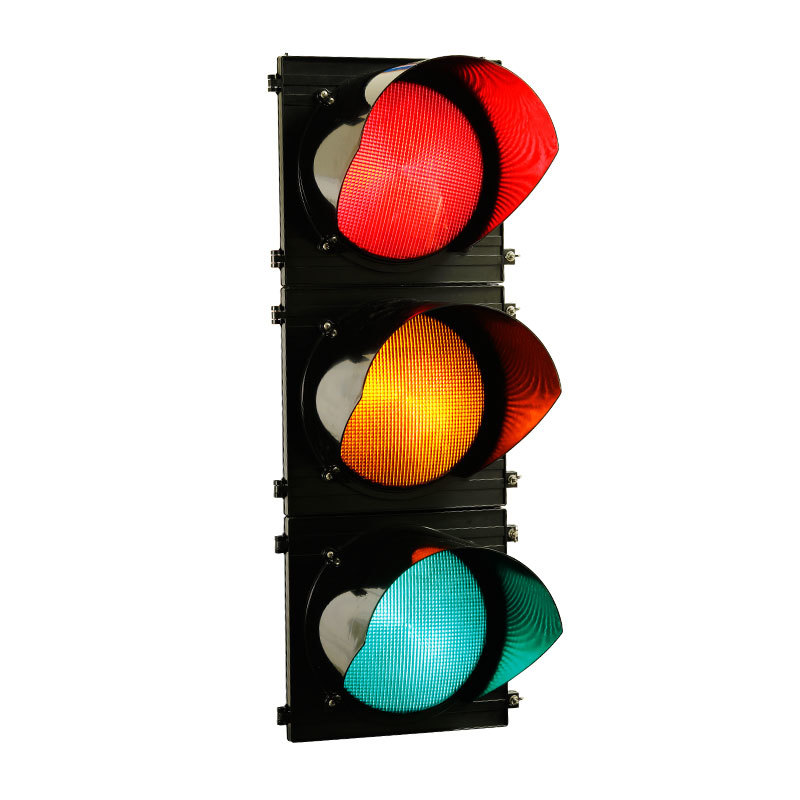

High Flux Vehicle Traffic Light
Key words：
Classification：
Vehicle Traffic Light
E-mail：
PRODUCT DESCRIPTION:
· Application – urban light signaling
· Input voltage - AC85V ~ 265V
· Incandescent-look polycarbonate tinted lens
· Internal diffusing optical lens for even light distribution
· Anti-phantom effect minimized, optimal viewing angle
· High intensity LED light source – low energy consumption
· High power LED (SMD) by NICHIA
· Long life cycle – more than 80,000 working hours
· Highly durable polycarbonate housing, UV-light resistant
· Modular design – easy installation and maintenance
· Fixation system either with polycarbonate or aluminum mounting brackets
· Compliance with CE, RoHS, EN12368, ISO9001
Overview：
· Features of our high flux traffic light:
· Regarding LED material, we use SMD LEDs(light-emitting diodes) of imported NICHIA photosynthetic efficiency, which unformly distribute within every aspect. Through twice effect of geometrical optics lens, the visible light emitted from light source evenly distributes on the lens, which will avoid direct light and reduce the interference of the temporary blind spot caused by it to the drivers.
· Regarding PCB material, we use thermal conductivity of 2.0 superconduction aluminum substrate, which can effectively conduct LED luminous heat to the heat dissipation area in time, effectively control working temperature and greatly prolong working life of LED.
· Regarding housing material, we use highly durable polycarbonate housing, UV-light resistant. And the lead content of the housing is less than 0.2%, without any pollution to the environment, in line with the national concept of environmental protection and energy conservation.
Specifications：
|
Diameter |
φ 200mm |
φ 300mm |
|
LED Type |
High Flux SMD |
|
|
Color-Wavelength |
Red 615~630nm, Amber 583~595nm, Green 500~510nm |
|
|
Optical Performance |
Conform to EN12368 standard |
|
|
View Distance |
≥300m |
≥500m |
|
Input Voltage |
AC85-265V, AC26-55V, DC10-30V |
|
|
Power Factor |
＞ 0.9 |
|
|
EMC |
acc. to EN50293 |
|
|
Power Consumption |
R ≤ 7W |
R ≤ 12W |
|
Y ≤ 9W |
Y ≤ 14W |
|
|
G ≤ 10W |
G ≤ 15W |
|
|
Working Temperature |
-40℃ ~ +80℃ (Class A,B,C acc. To EN12368) |
|
|
Ingress Protection |
IP55 acc. to EN 60529 |
|
|
Impact Resistance |
Class IR 3 acc. To EN60598-1 |
|
|
Material of Lens/Housing |
UV-stabilized polycarbonate |
|
|
Color of Housing |

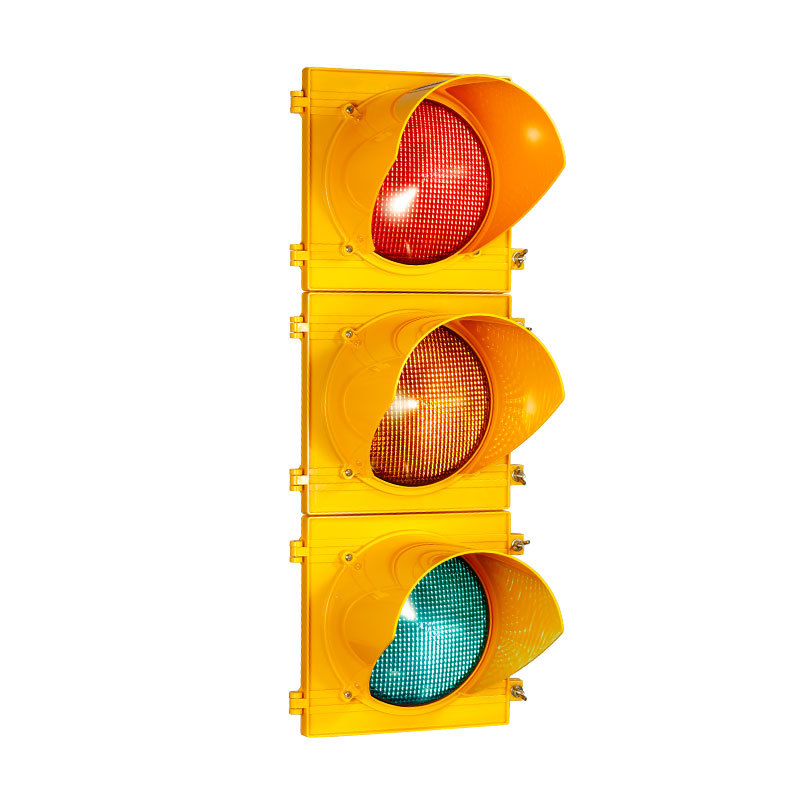

Black - standard, fir-green/yellow upon qty request |
|
