Product Series

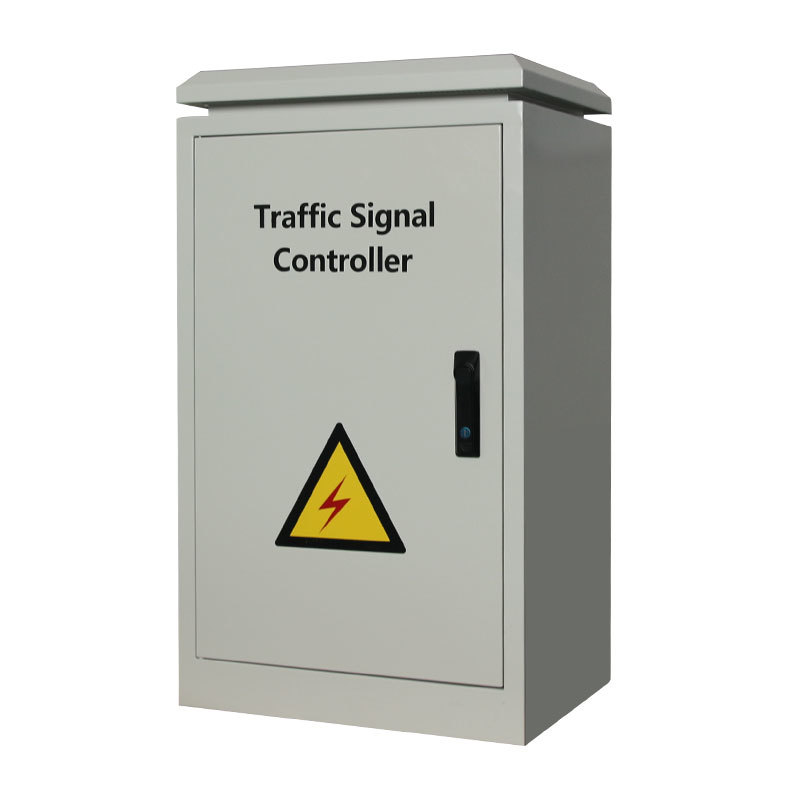

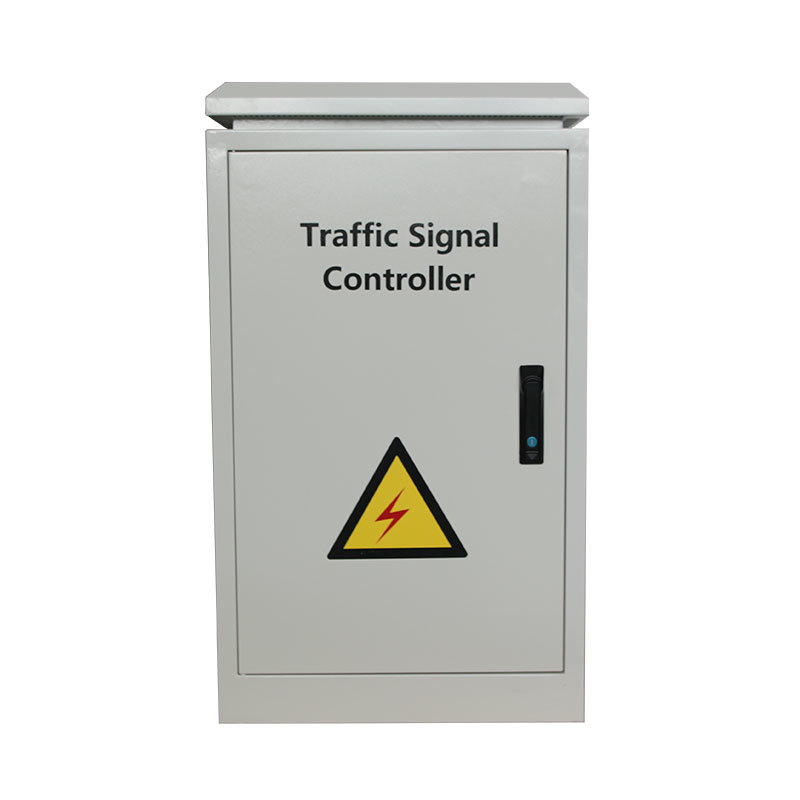

Fixed-Time Traffic Light Controller
Key words：
Classification：
Traffic Light Controller
E-mail：
PRODUCT DESCRIPTION:
· Various control modes (multi-periods, yellow fiash1ng, manual control).
· Simulated intersection display for easier programming.
· Simple wiring according to E, S, Wand S.
· Various protection functions including electric leakage protection.
· lightning protection, output short-circuit protection.
· high current shock protection.
· Automatic green conflict detection.
· Built-in central control system to ensure work stability.

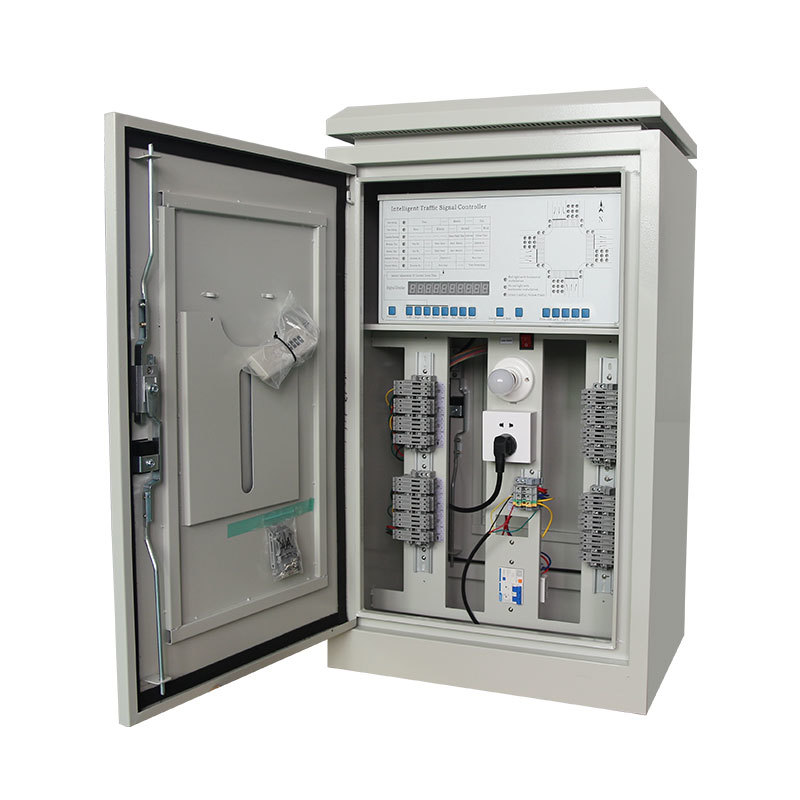

· Modular design - easy for maintenance and function extension.
Specifications：
|
Working voltage |
AC85-265V, 50-60Hz |
|
Signal Outputs |
44 outputs/ 16 groups |
|
Working Menus |
32(each menu max 99 steps) |
|
Working Temp |
-40°C-75°C |
|
Size/ IP Level |
550*400*950mm / IP54 |
|
Insulation Value |
≥100MΩ |
|
Working Periods |
2x99(Workday/Weekend) |
|
Max Step Length |
255s |
|
Humidity |
5%-95% |
|
Time Error |
±1S |
