Product Series

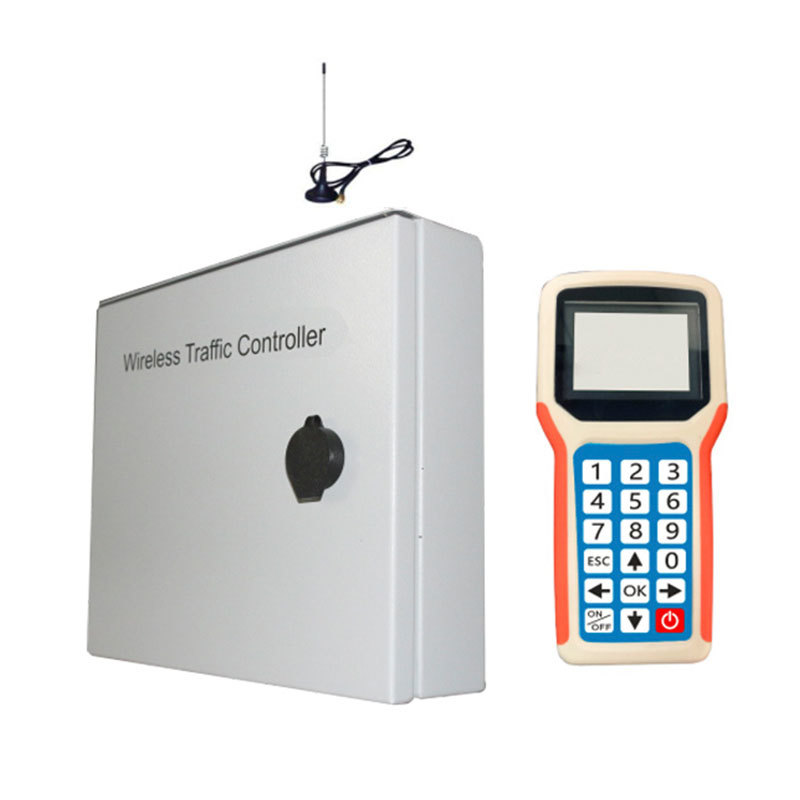

Solar Wireless Traffic Light Controller
Key words：
Classification：
Traffic Light Controller
E-mail：
PRODUCT DESCRIPTION:
· Stable GFSK communication system at 490MHZ.
· 8 selective signal channels of wireless communication.
· The optimal solution for junctions without power grid/ducting is not easy.
· Multi-period working modes.
· manual stepping control, yellow flashing, etc.
· Easy settings with hand-held remoter.
· Wide solar working volta voltage.
· 12/24VDC self-adaptive, over-voltage protection on 30VDC.
Specifications：
|
Working voltage |
DC12 /24V(self-adaptive) |
|
Signal Outputs |
11 outputs / controller |
|
Master Controller Qty |
1pcs |
|
Working Temp |
-20°C- 80°C |
|
MTBF |
>10000 hrs |
|
Size/ IP Level |
300x281.2 x82mm/ IP54 |
|
Wireless Communication Distance |
>600m |
|
Unloaded power |
<1W@DC12V&<1.5W@DC24V |
|
Working Periods |
16 |
|
Slave Controller Qty |
0-8pcs |
|
Humidity |
98% |
|
MTTR |
≤0.5hrs |
|
Setting Saving Time |
≥10years |
|
Wireless communication parameters |
GFSK 490MHz ,Baud rate9600bps , Transmitting power ≤100mW |
