Product Series

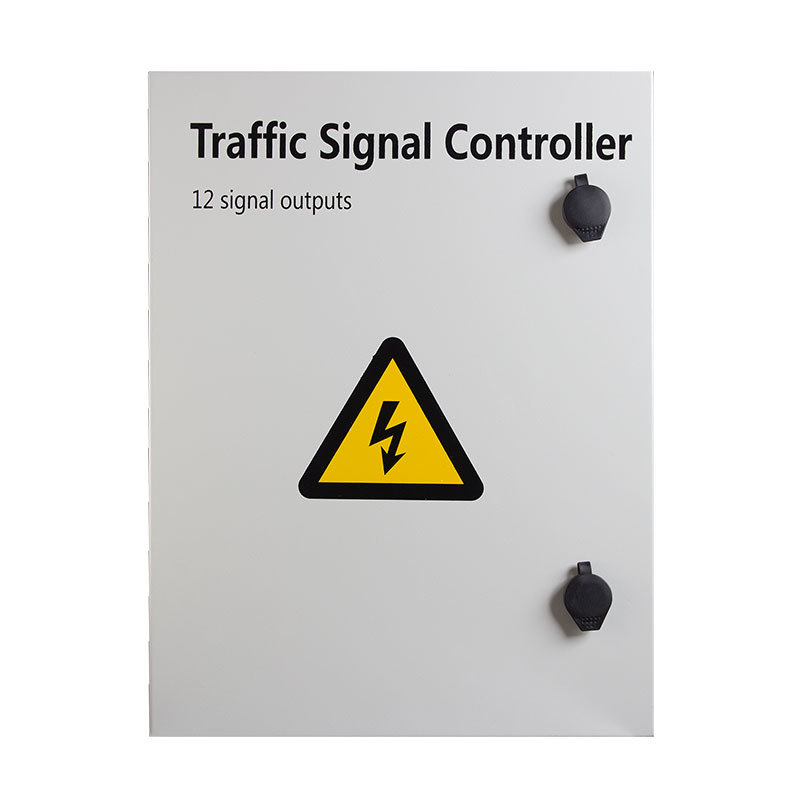

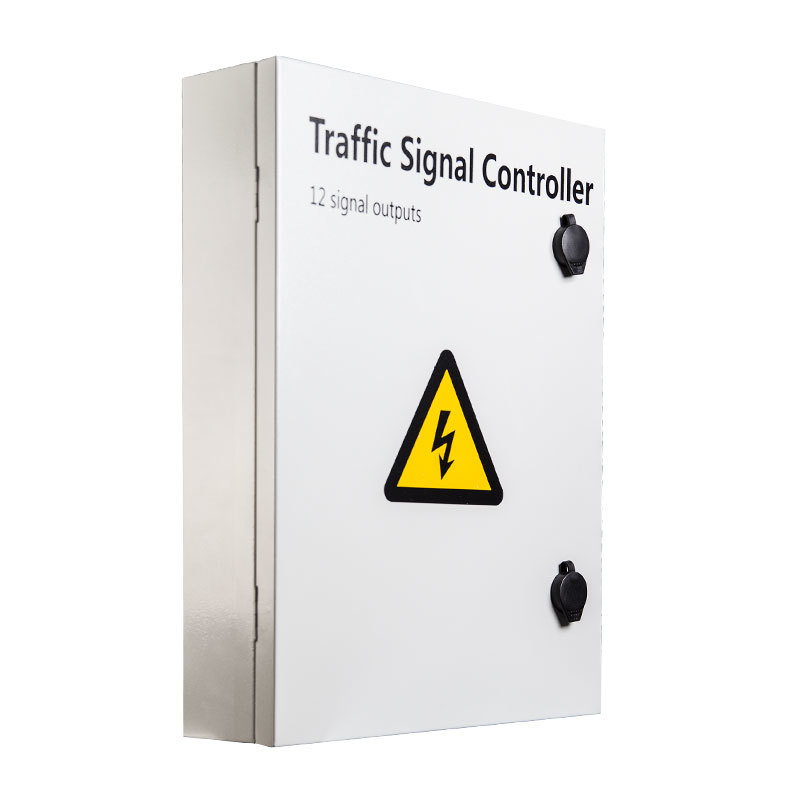

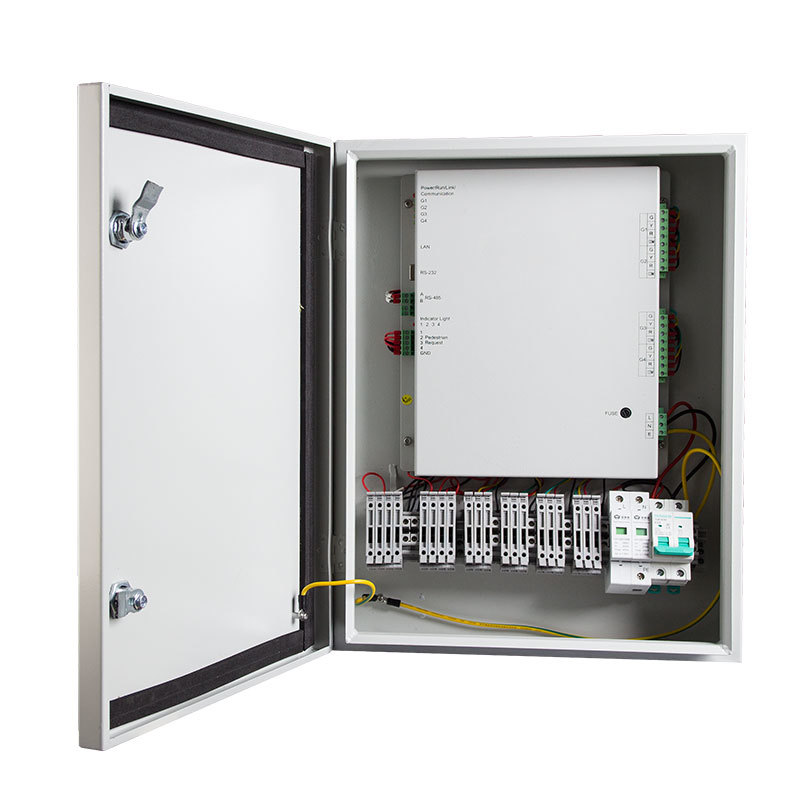

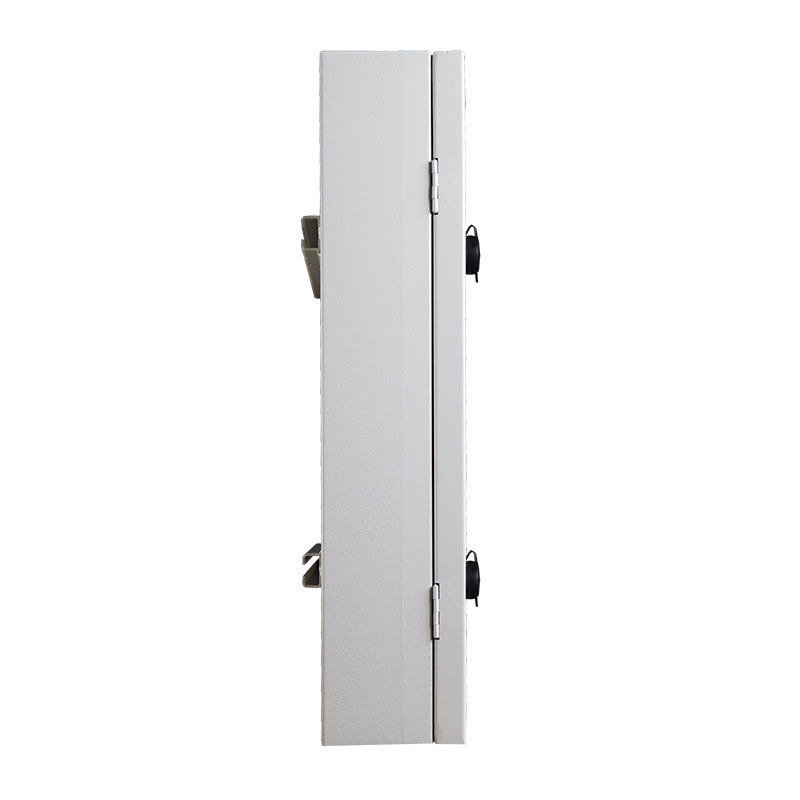

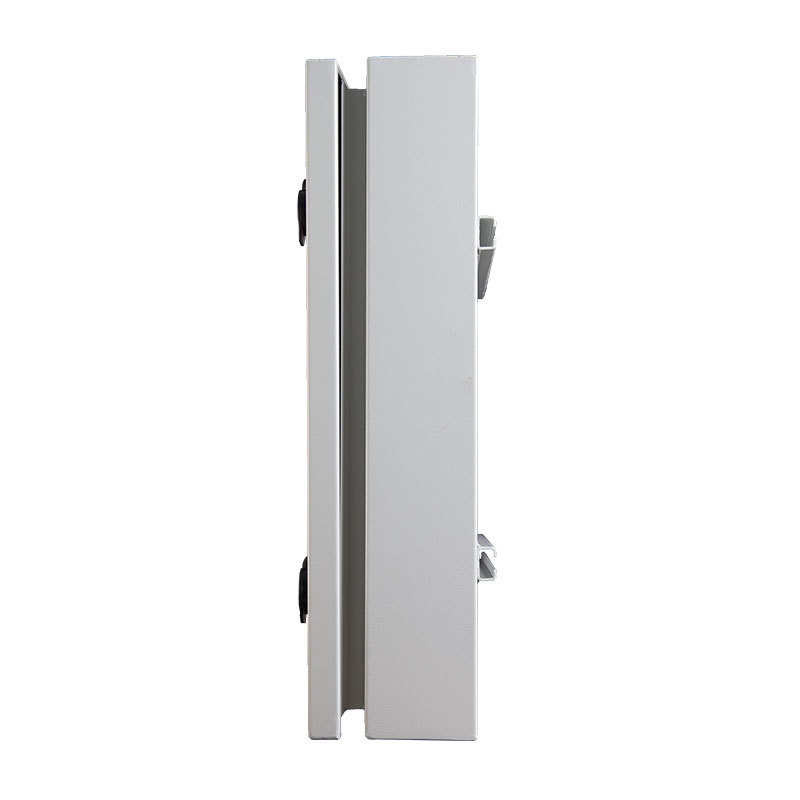

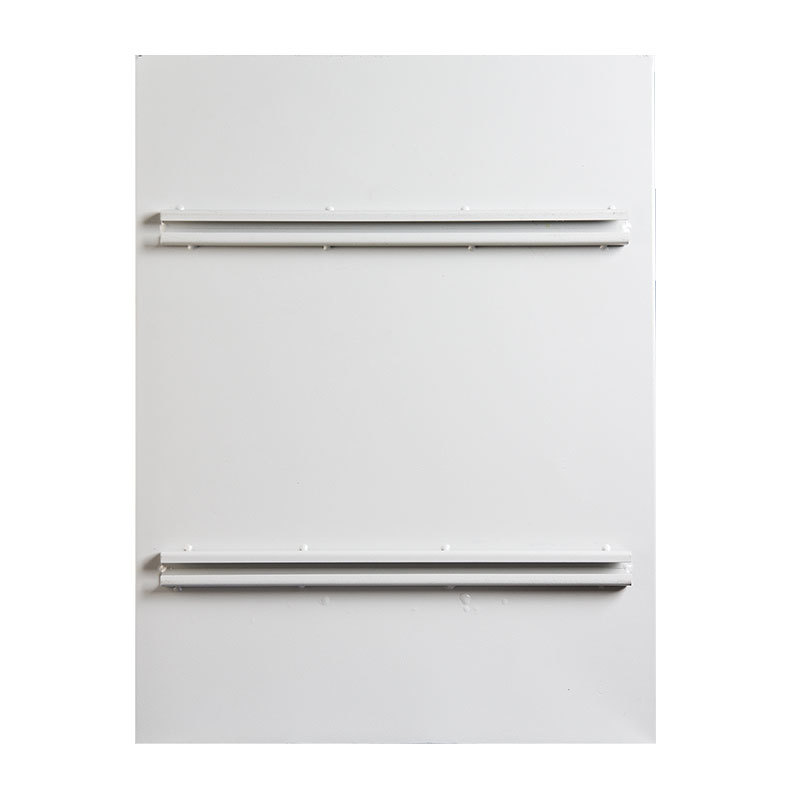

Pedestrian Crossing Signal Controller
Key words：
Classification：
Traffic Light Controller
E-mail：
PRODUCT DESCRIPTION:
· Fixed time mode: vehicle flow in peak time.
· Pedestrian requirements mode: vehicle flow in off peak daytime).
· Yellow flashing mode: vehicle flow in off-peak time (middle night period).
· Switch off mode: vehicle flow in off-peak time (earlier morning period).
Specifications：
|
Input Voltage Range |
85 VAC- 265 VAC , 50/60Hz |
|
Power Consumption |
≤10W (unloaded) |
|
Max. Output Load |
100 watts per output |
|
Working temperature |
-20°C to+ 70°C |
|
Relative Humidity |
<95% |
|
Settings Saving Time |
10 years |
|
Annualized Time Deviation |
<2.5min |
|
Outputs |
4 Groups of 3 Outputs each one (ST-TSC-M12-AC1) |
|
Pedestrian Request Inputs |
4 Opto-isolated inputs (ST-TSC-M12-AC1) |
|
Ports |
Ethernet: RJ45 / RS232 / RS485 (ST-TSC-M 12-AC1) |
