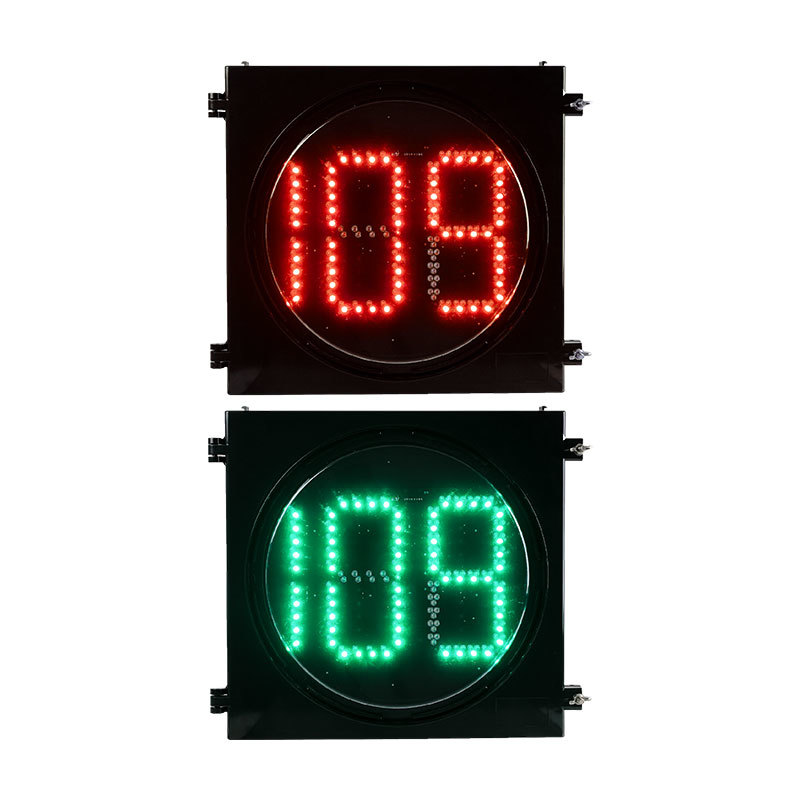

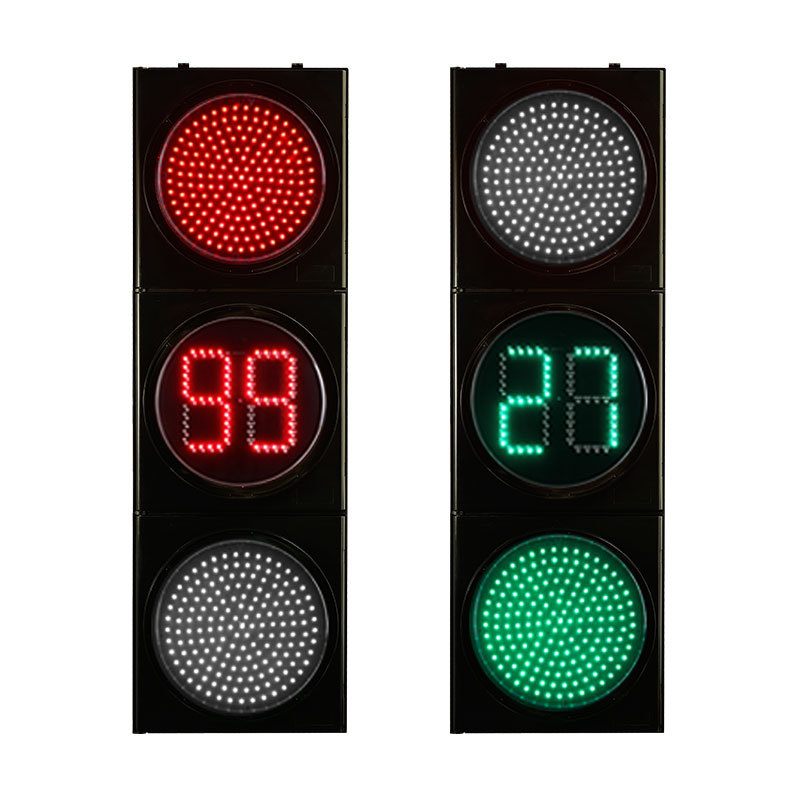

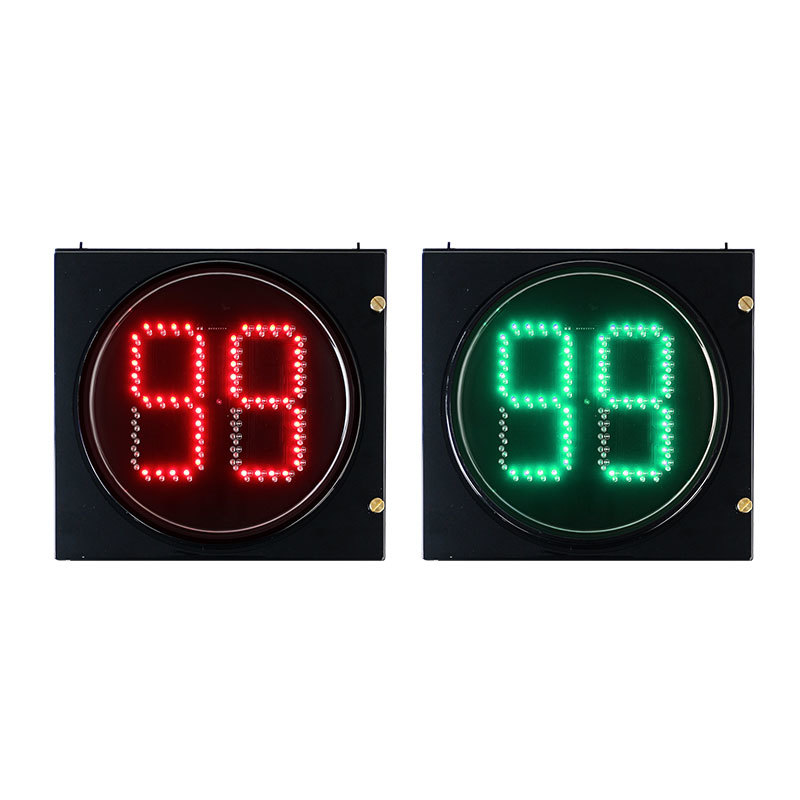

200mm/300mm Round Countdown Timer Traffic Light
Key words：
Classification：
Traffic Light Countdown Timer
E-mail：
PRODUCT DESCRIPTION:
· Application – junction traffic signal counting.
· Available in learning triggered or communicative version.
· Ability to be synchronized with any traffic signal controller.
· Wide operating voltage adapting to different countries.
· Transparent poly-carbonate optical lens – impact resistant.
· High intensity LED light source – low energy consumption.
· Long life cycle – more than 80,000 working hours.
· Highly durable UV-light resistant polycarbonate housing.
· Fixation system with L-shaped/arm-shaped mounting brackets.
Specifications：
|
Diameter |
φ 200mm |
φ 300mm |
|
Digits |
2 digits |
2/2.5 digits |
|
LED Type |
5mm DIP |
|
|
Color |

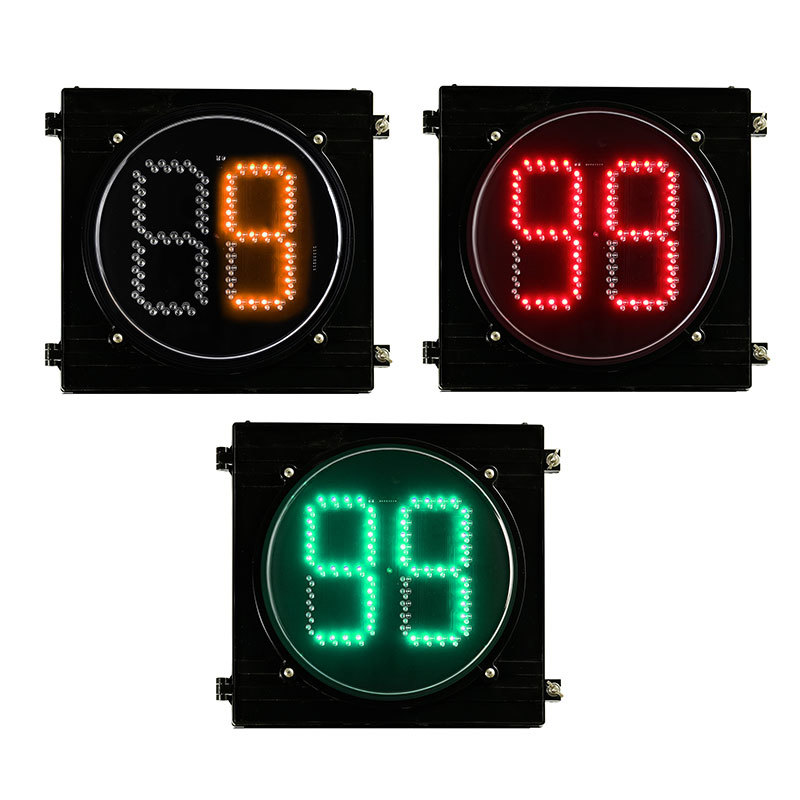

Bi-color (R/G), or tri-color (R/A/G) |
|
|
LED Type |
5mm DIP |
|
|
Color-Wavelength |
Red 620~630nm, Amber 590~594nm, Green 503~508nm |
|
|
Luminous Intensity |
R ≥ 20000cd/m² |
R ≥ 15000cd/m² |
|
A ≥ 20000cd/m² |
A ≥ 15000cd/m² |
|
|
G ≥ 50000cd/m² |
G ≥ 40000cd/m² |
|
|
View Distance |
≥200m |
≥300m |
|
Power Consumption |
R ≤ 7W |
R ≤ 7W |
|
A ≤ 3W |
A ≤ 3W |
|
|
G ≤ 7W |
G ≤ 7W |
|
|
Input Voltage |
AC85-265V, DC12/24V |
|
|
Working Temperature |
-40℃ ~ +80℃ (Class A,B,C acc. To EN12368) |
|
|
Ingress Protection |
IP55 acc. to EN 60529 |
|
|
Impact Resistance |
Class IR 3 acc. To EN60598-1 |
|
|
Material of Lens |
UV-stabilized polycarbonate |
|
|
Color of Housing |
Black - standard, fir-green/yellow upon qty request |
|
|
Working Mode |
Learning mode - fixed time control |
|
|
Triggered mode - adaptive control |
||
|
Communicative mode - adaptive control |
||
|
Application |
Vehicle/pedestrian traffic signals counting |
|
