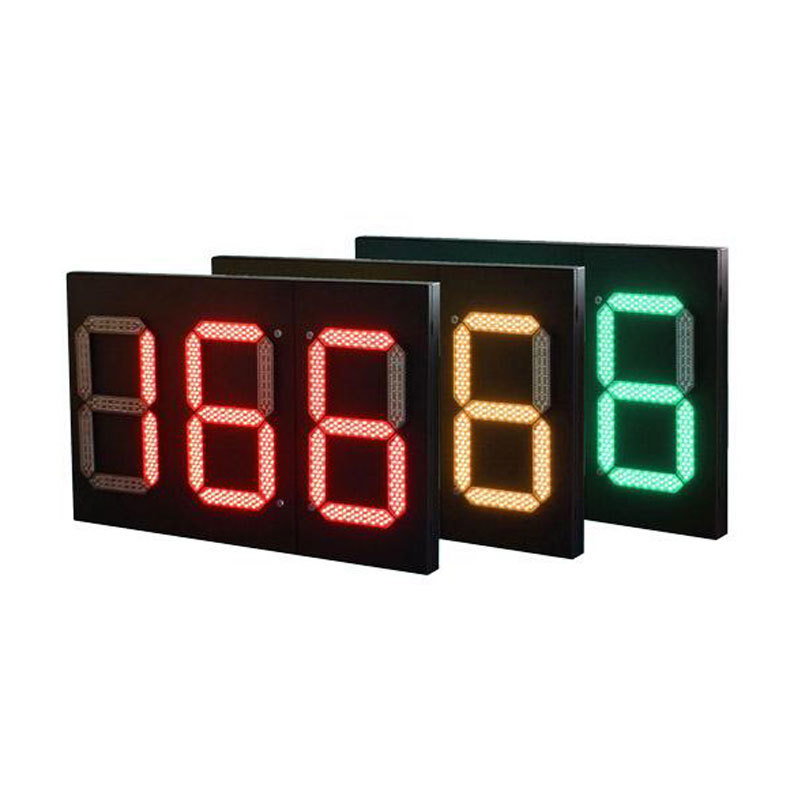

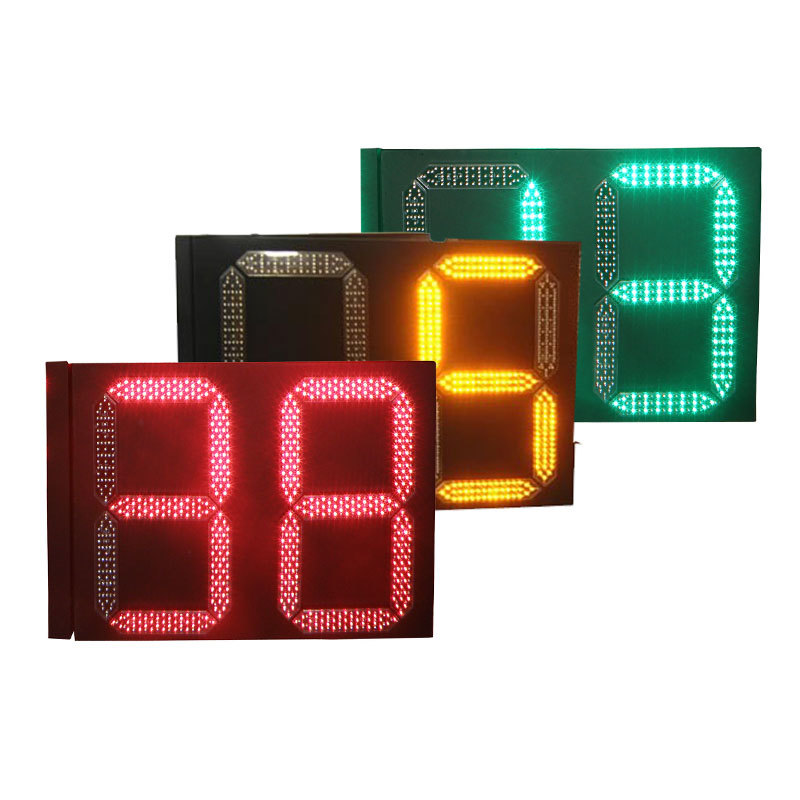

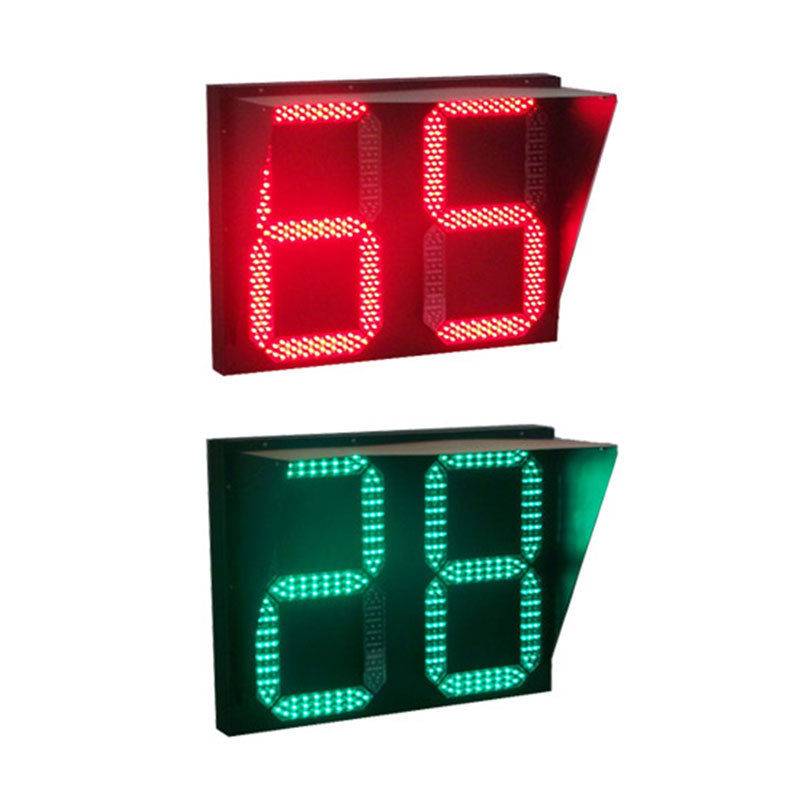

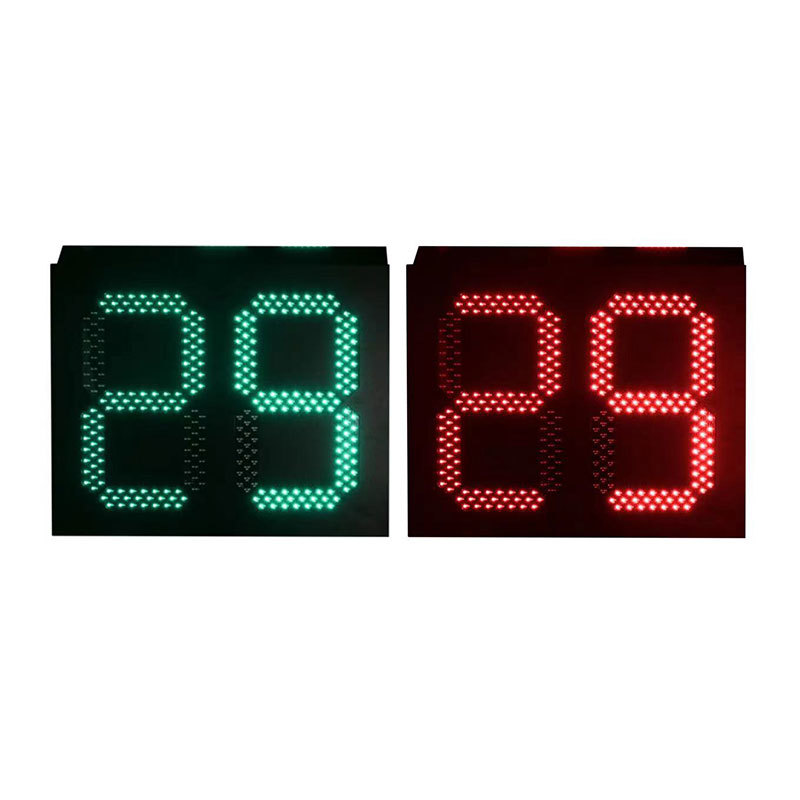

Square Metal Countdown Timer Traffic Light
Key words：
Classification：
Traffic Light Countdown Timer
E-mail：
PRODUCT DESCRIPTION:
· Application – junction traffic signal counting.
· Available in learning triggered or communicative version.
· Ability to be synchronized with any traffic signal controller.
· Wide operating voltage adapting to different countries.
· Long-distance visibility-enhancing road safety.
· High intensity LED light source – low energy consumption.
· Long life cycle – more than 80,000 working hours.
· An anti-corrosive coating on cold-rolled iron housing.
· Industrial structural design with high reliability and durability.
· Guide rail brackets installation optional.
Specifications：
|
Diameter |
800*600mm |
900*600mm |
1100*600mm |
|
Digits |
2 digits - max 99 |
2.5 digits - max 199 |
3 digits - max 999 |
|
Digit composition |
7 LED segments/Digit (LED qty/segment R-28pcs, A-28pcs, G-25pcs) |
||
|
Color |
Bi-color (R/G), or tri-color (R/G/A-one digit only) |
||
|
LED Type |
5mm DIP |
||
|
Color-Wavelength |
Red 620~630nm, Amber 590~594nm, Green 503~508nm |
||
|
Luminous Intensity |
R ≥ 10000cd/m² |
R ≥ 10000cd/m² |
R ≥ 10000cd/m² |
|
A ≥ 10000cd/m² |
A ≥ 10000cd/m² |
A ≥ 10000cd/m² |
|
|
G ≥ 15000cd/m² |
G ≥ 15000cd/m² |
G ≥ 15000cd/m² |
|
|
View Distance |
≥300m |
≥300m |
≥300m |
|
Power Consumption |
R ≤ 30W |
R ≤ 35W |
R ≤ 45W |
|
A ≤ 15W |
A ≤ 15W |
A ≤ 15W |
|
|
G ≤ 30W |
G ≤ 35W |
G ≤ 45W |
|
|
Input Voltage |
AC85-265V, 50/60Hz |
||
|
Working Temperature |
-40℃ ~ +80℃ (Class A,B,C acc. To EN12368) |
||
|
Ingress Protection |
IP54 acc. to EN 60529 |
||
|
Impact Resistance |
Class IR 3 acc. To EN60598-1 |
||
|
Material of Lens/Housing |
Cold-rolled iron sheet with anti-corrosive coating (aluminum available upon qty request) |
||
|
Color of Housing |
Black |
||
|
Working Mode |
Learning mode - fixed time control |
||
|
Triggered mode - adaptive control |
|||
|
Communicative mode - adaptive control |
|||
|
Application |
Vehicle traffic signals counting |
||
